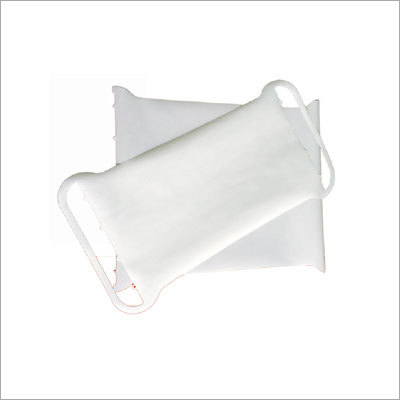

Ultrafiltration Membrane

Ultrafiltration Membrane

1-2 USD ($)/Roll

Product Details:

  • Function its application in electro coating paint system
  • Use Electro coating paint system
  • Material Anion exchange membrane
  • Supply Ability : 100 Roll Per Day
  • Click to view more
X

Price And Quantity

  • 1 Roll
  • 1.00 - 2.00 USD ($)/Roll
  • 1-2 USD ($)/Roll

Product Specifications

  • Anion exchange membrane
  • its application in electro coating paint system
  • Electro coating paint system

Trade Information

  • 100 Roll Per Day
  • 2-3 Week

Product Description

We have established ourselves among the trusted manufacturers and exporters of the market by offering an unmatched range of Ultrafiltration Uf Membrane. These membranes are used for removing suspended solids, bacteria, and high concentrations of macromolecules from water and liquid solutions. Our Ultrafiltration Uf Membrane is designed with utmost perfection at our state of the art manufacturing unit from best quality materials. Our clients can avail these membranes from us at affordable prices.

Features:

  • High flux rate
  • Application specific design
  • Highly durable

Technical Specifications

Model

MWCO

Flow rate i/p/h@0.35Mpa

Effective Area M2

UR030-380

30,000

47

0.19

Operation Specifications

Typical operating pressure

40-100 psi(3.0-7.0bar)

Maximum operating pressure

130 psi(9.0 bar)

Operating temperature range

50-122oF(10-50oC)

Maximum cleaning temperature range

131oF(55oC)

Allowable pH-continuous operation@25oC

1.0-10.0

Allowable pH-CIP@25oC

1.0-11.0

Decoding of the product code: SS-UE010-6338-G1XX

UF Configuration

Outer Wrap

Membrane Range

Membrane Mateial

MWCO

Size

Feed Spacer

Internal Code


Spiral

Sanitary Net Glass Fiber

UF

E=PES
S=PS
F=PVDF
N=PAN
C=CELLULOSE
R=REGENERATED CELLULOSE

011000Da
0055000Da
01010, 000Da
02020, 000Da
03030, 000Da

23192.3”x19”
25402.5x40
38383.8x38
63386.3x38
80388.0x40

A=13mil
B=17mil
C=20mil
D=26mil
E=28mil

F=31mil
G=46mil
H=65mil
I=80mil
J=120mil

May be omitted

1=Diamond

2=Parallel
