As an ISO 9001:2008 approved exporter and manufacturer, we are engaged in providing wide array of High Flux Regenerated Cellulose Membrane Sheet. Provided material is extensively used in ground water purification, treatment of waste water and reverse osmosis based pre-treatment procedures. This product has been developed under the supervision of competent personnel by utilizing premium quality raw materials by adhering industry specified guidelines. We offer this material at reasonable price range.
Features
Further Details:

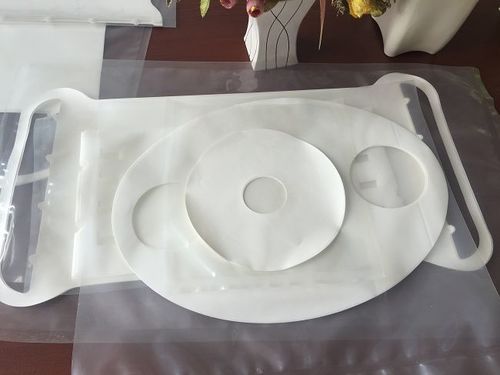

Rectangular in appearance, offered High Flux Regenerated Cellulose Membrane Sheet can also be availed in other shapes. These panels or cartridges or sheets have semi rigid structure, although these are accessible in their thinner versions of high flexibility level.
These are backed by plastic plate and their edge is welded from both sides. Passed fluid or water through these panels is collected when it penetrates inside these. Coarse bubble aerator is used to generate air bubbles to remove accumulated sludge from membrane surface
Offered filtration sheets are perfect for submerged membrane bio reactors utilized in different industries and also in municipality. Easy to operate, these can be installed quickly.
Application:
Membrane Chemistry | Membrane Advantages |
PES | Chemical resistance |
PS | MWCO is precise |
PVDF | High flux, long usage life |
PAN | High resistance to fouling |
PA | Acid/caustic resistant, high temperature |
CA | membrane are available |
RC |
|
Technical Specifications
UF Membrane Model | Membrane Chemistry | MWCO(Dalton) | Flow Rate(LMH) @25oC, 0.35MPa | Replacement Reference | Typical Application | |
Brand | Model | |||||
UE001 | PA | 1000 | 40 | GE | GE | Color Removal |
UE003 | 3500 | 65 | GK | |||
UE005 |
| 5000 | 100 | KOCH | HFK-328 | |
GE | PT | |||||
UE008 |
| 8000 | 130 | GE | GM | |
UE010 | PES |
| 150 | KOCH | HFK-131 | |
GE | PW | |||||
NADIR | UP010 | |||||
UE020 |
| 20000 | 200 | NADIR | UP020 | |
SEPRO | PE20 | |||||
UE030 |
| 30000 | 240 | NADIR | UH030 | |
UE050 |
| 50000 | 260 | UH050 | ||
US020 | PS | 20000 | 280 | SEPRO | PS20 | |
US050 | 50000 | 350 | NADIR | US100 | ||
UF050 | PVDF | 50000 | 400 | KOCH | HFM-100 | |
UF100 | 100000 | 500 | HFM-300 | |||
UN100 | PAN | 100000 | 450 | SEPRO | PA400 | |
UR030 | RC | 30000 | 250 | NADIR | UC030 | |
UR100 | 100000 | 350 | UC100 | |||
UC005 | CA | 5000 | 150 | SARTORIUS | 14529 | |
UC010 | 10000 | 200 | 14539 | |||
UC050 | 50000 | 350 | 14549 |
MF Membrane Model | Membrane Chemistry | MWCO(um) | Flow rate (LMH) @25oC, 0.35MPa | Replacement Reference | Typical Application | |
Brand | Model | |||||
ME005 | PES | 0.05 | >280 | NADIR | MP005 | MBR Industry, Biotech/Pharmaceutical, Microbial removal, Protein separation, Antibiotic Clarification, Enzyme Clarification, Pretreatment for RO/NF etc. |
MF010 | PVDF | 0.1 | >500 | TORAY | MBR | |
MF022 | 0.22 | >1000 | KUBOTA | |||
MF045 | 0.45 | >1500 | ENVIS |
